Conveyor Rollers

High-quality conveyor rollers for material handling and continuous industrial transport.

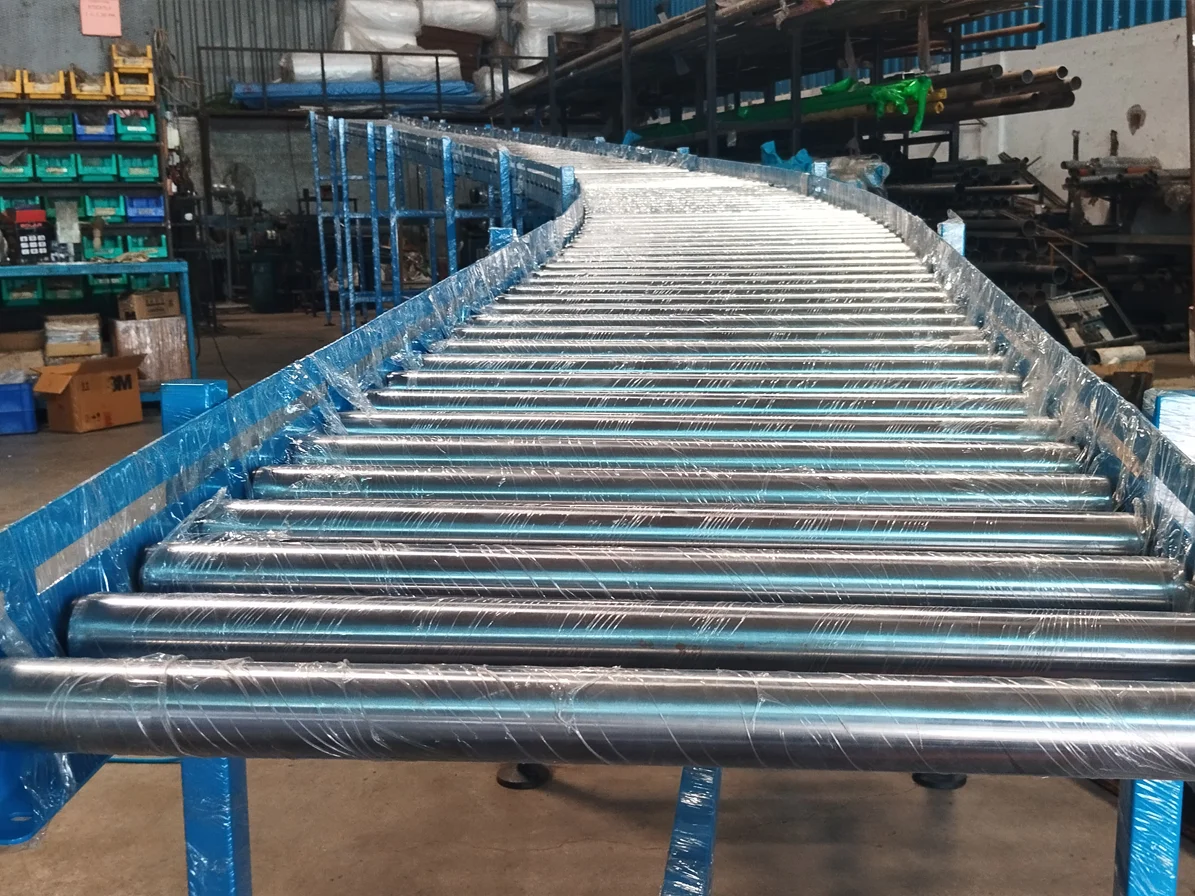

Gravity Rollers

Non-powered gravity rollers for frictionless material flow in inclined conveyor systems

Roller diameter range: 32mm to 76mm depending on load requirements
Load capacity: 50kg to 1000+ kg per roller based on specifications
Bearing housing: Injection-molded polymide for durability
Temperature rated for room temperature applications up to continuous use

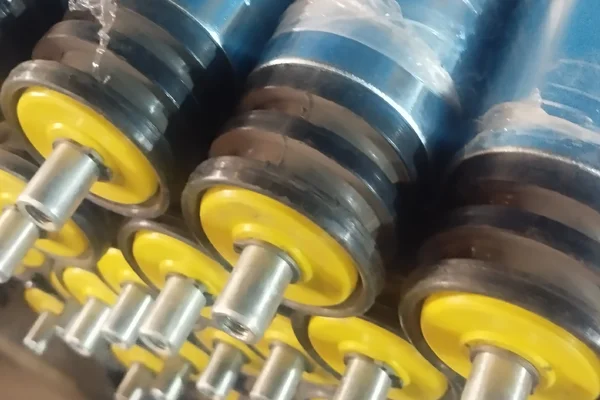

Grooved Rollers

Specialized rollers with grooved surface profiles for precision belt and chain drive applications

Groove patterns: V-groove, O-ring groove, and custom groove configurations
Roller diameter range: 38mm to 80mm for standard industrial applications
Precision ground grooves ensure <0.5mm runout tolerance
Load capacity: Up to 800kg per roller in heavy-duty configurations

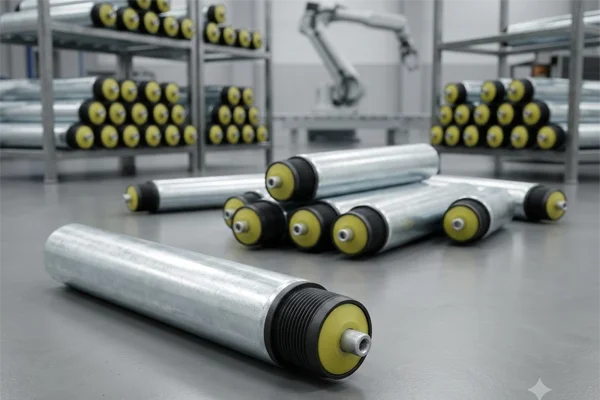

Poly Vee Driven Rollers

Poly vee driven rollers with ribbed belt interface for positive drive transmission

Ribbed surface for poly vee belt engagement without slip
Roller diameter range: 45mm to 90mm for industrial automation
Multiple rib pitch options accommodate various belt types
Load capacity: 500kg to 1200kg depending on drive configuration

Poly Vee Pulley Driven Roller

Standalone pulley-driven rollers for belt-driven conveyor systems with customizable drive ratios

Integrated pulley diameters: 60mm to 150mm for speed ratio flexibility
Poly vee belt interface for direct motor coupling compatibility
Load capacity: 400kg to 900kg depending on pulley and motor rating
Factory-tested assembly ensures out-of-box operational readiness

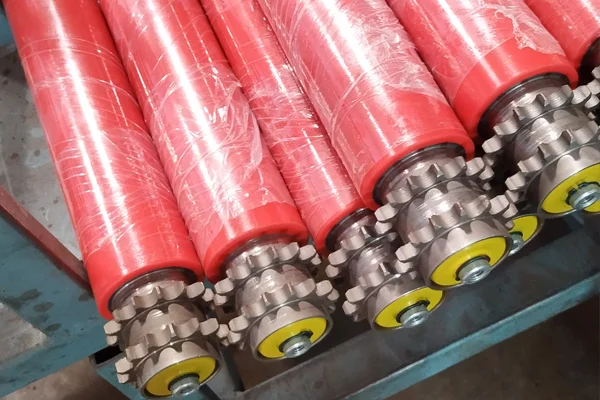

Sprocket Drive Rollers

Chain-driven rollers with sprocket teeth for heavy-duty powered conveyor systems

Sprocket pitch: 25.4mm (1 inch) standard for industrial chain compatibility
Roller diameter: 60mm to 90mm with sprocket tooth engagement
Load capacity: 1000kg to 3000kg+ depending on roller diameter
Chain compatibility: Standard industrial roller chain for universal integration

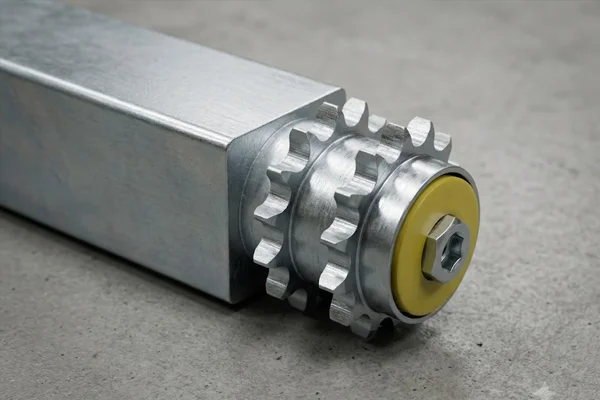

Square Rollers

Square-profiled rollers for bag and flat-pack handling with enhanced grip and stability

Square profile: 40mm x 40mm to 65mm x 65mm cross-section
Length: Customizable from 300mm to 2000mm per installation requirements
Load capacity: 300kg to 800kg depending on material and width
Material options: Carbon steel with zinc plating or stainless steel finish

Timing Pulley Driven Rollers

Timing belt driven rollers for synchronized precision conveyor operation with zero-slip guarantee

Timing belt pitch: 5mm or 10mm HTD profiles for standard compatibility
Roller diameter: 30mm to 60mm with tooth engagement depth
Load capacity: 200kg to 600kg in light to medium-duty configurations
Tolerance: <0.2mm runout for precision positioning requirements
