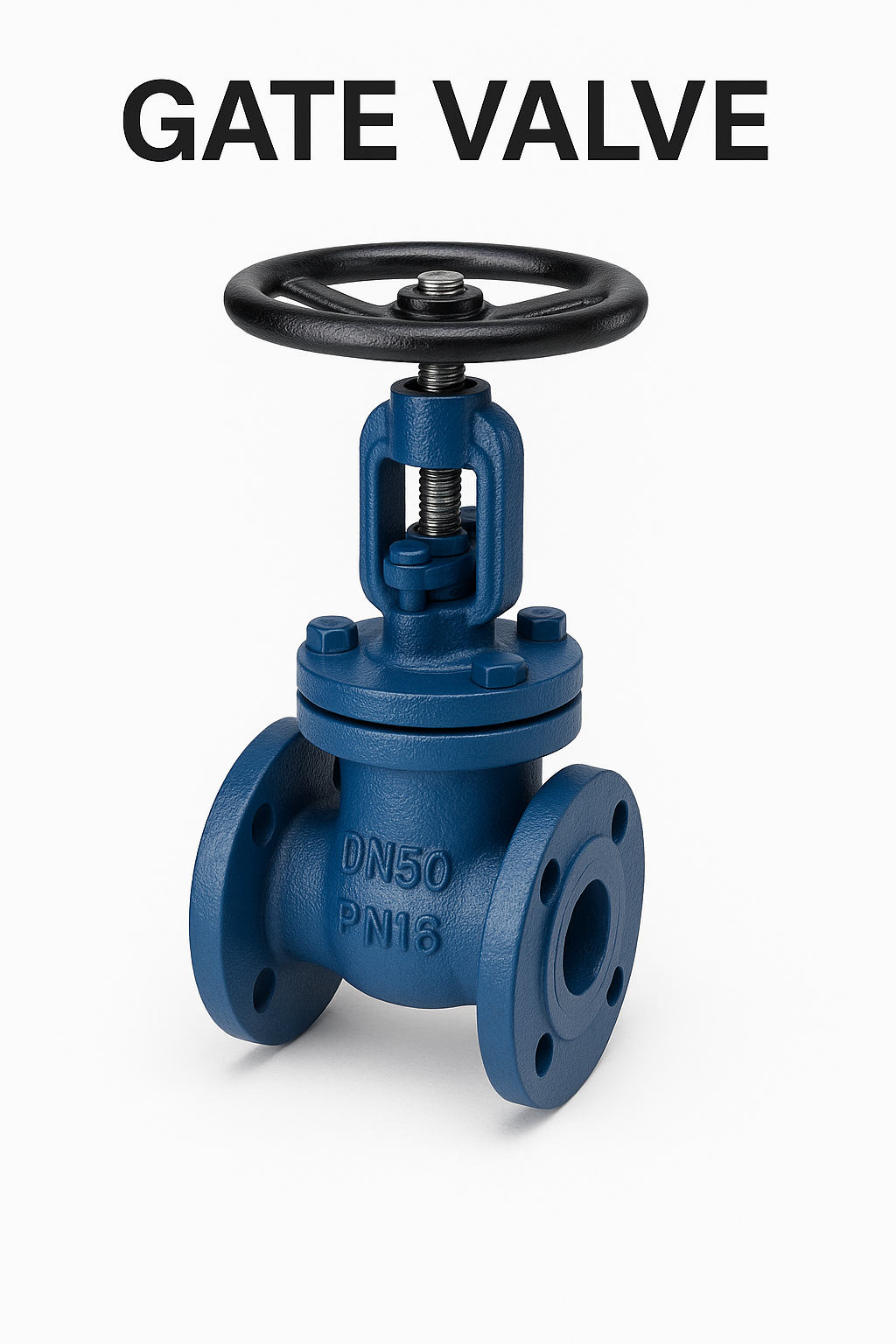

Gate Valves

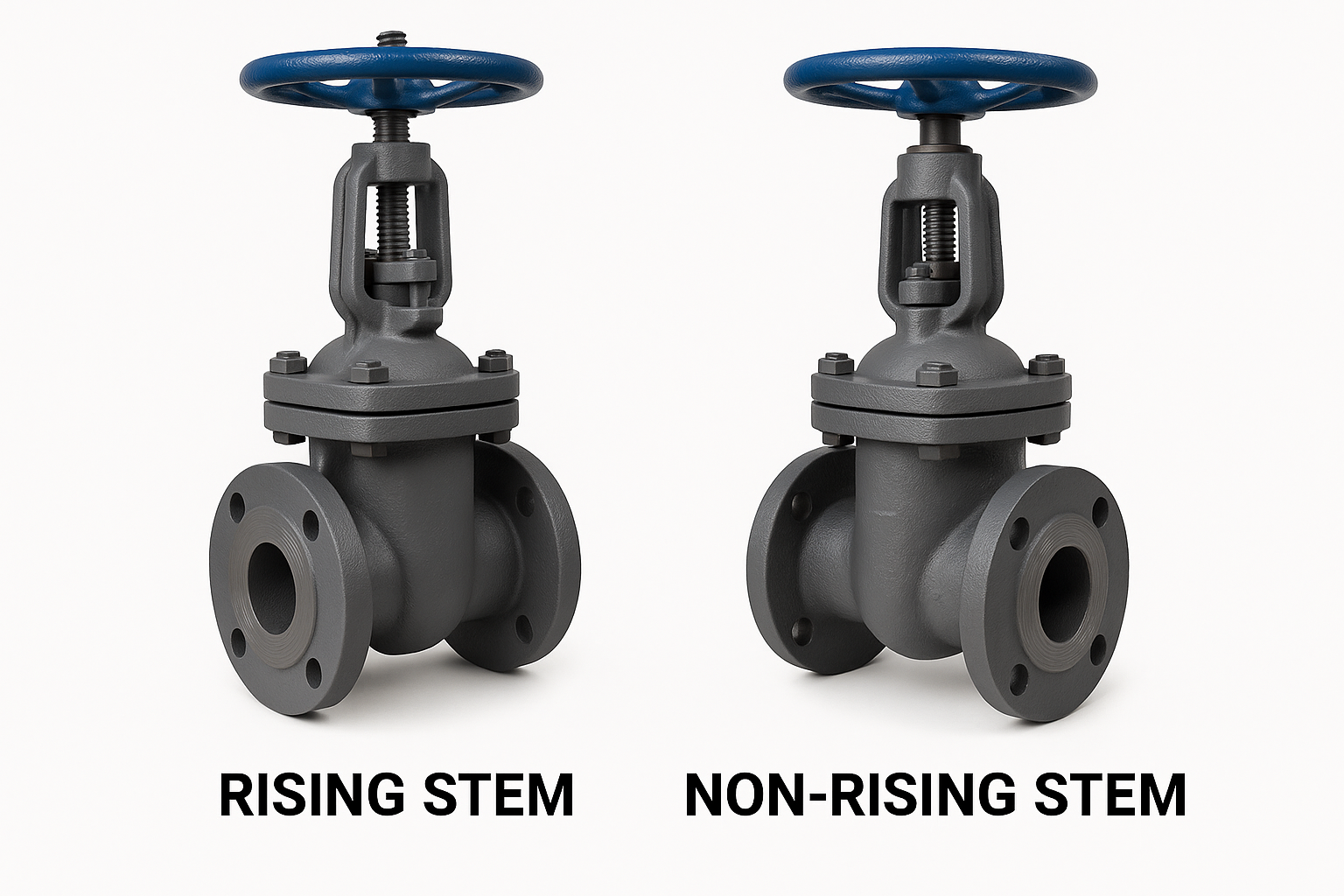

Gate valves provide dependable full-port shutoff with minimal pressure drop during open operation. The rising stem design provides visible indication of valve position while protecting the stem threads from environmental exposure.
The flat sliding gate mechanism seals against two tapered seats, creating a reliable barrier against backflow. The straight-through flow path in fully open position minimizes turbulence and enables unrestricted flow capacity.
Specifications
- Rising stem design with visual position indication
- Thread or flange connections for system integration
- Pressure ratings from 100 to 600 PSI
- Material options: bronze, ductile iron, or stainless steel
Applications
- Water system isolation valves in distribution networks
- Utility service shutoff in building supply systems
- Industrial process isolation and emergency shutoff applications
- Pump discharge protection and system isolation
Benefits
- Full-port design minimizes pressure drop in open position
- Rising stem provides positive shutoff position indication
- Reliable sealing with minimal maintenance requirements
- Available in standard and high-pressure ratings
